Commercial Avirnaki

commercial avirnaki smokeless roaster

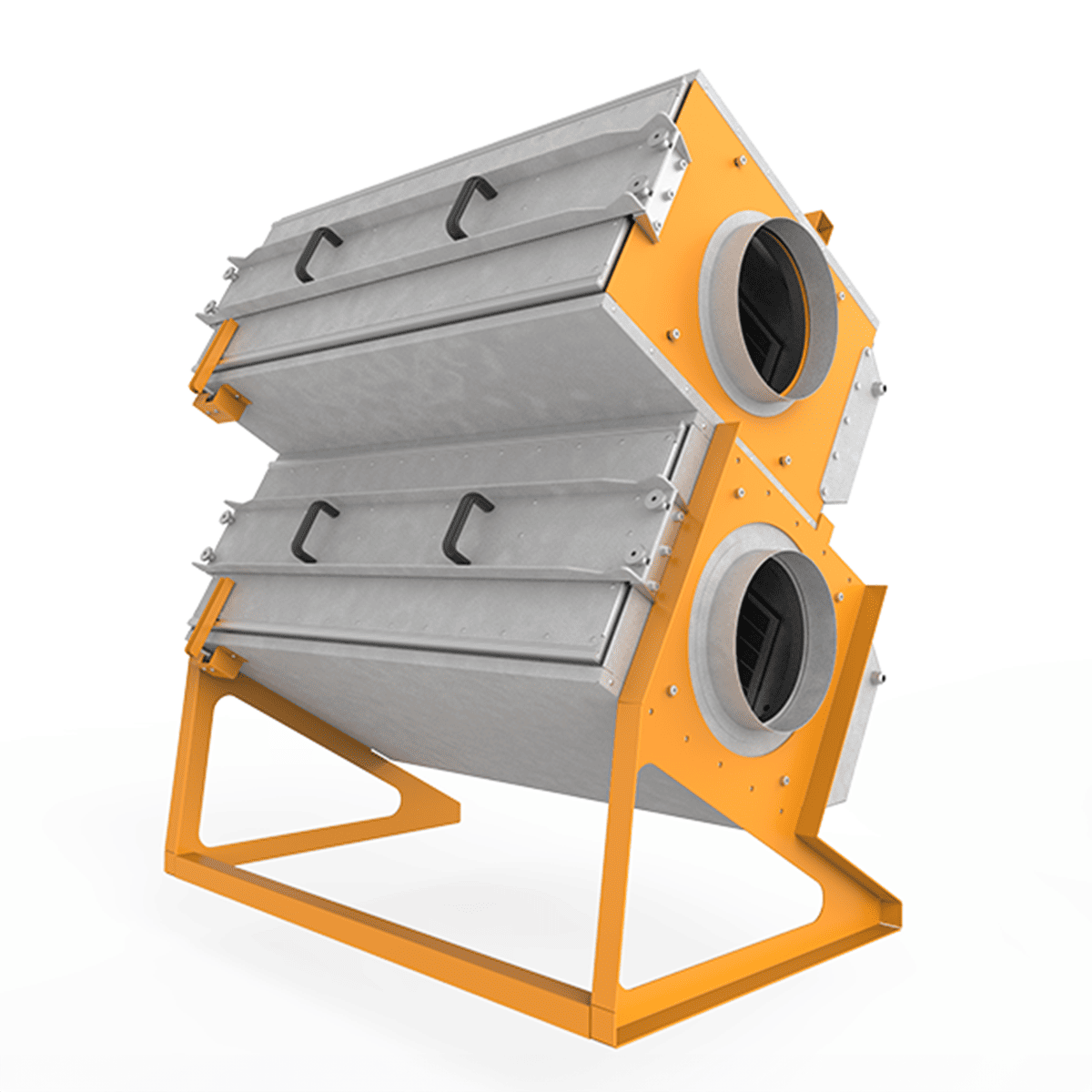

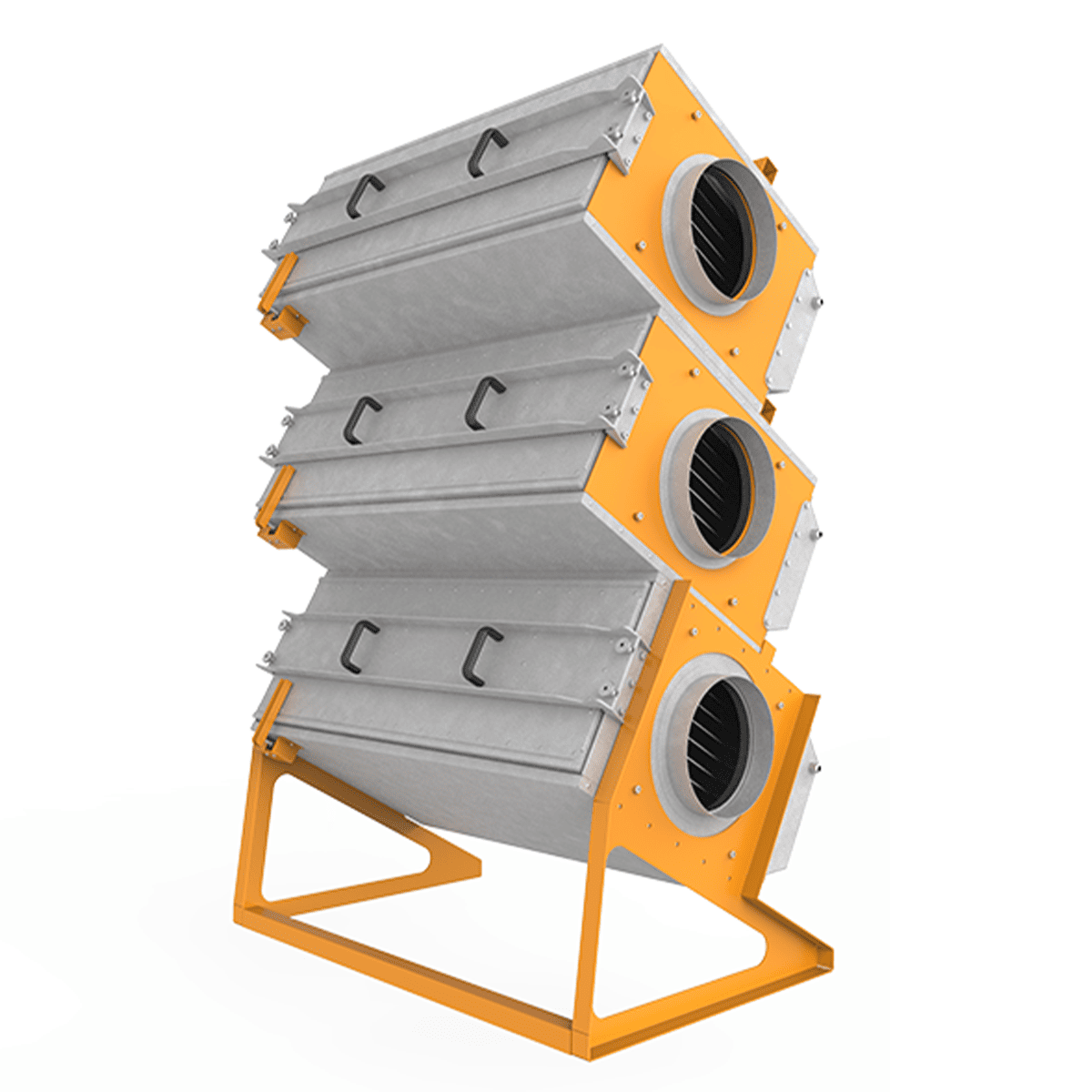

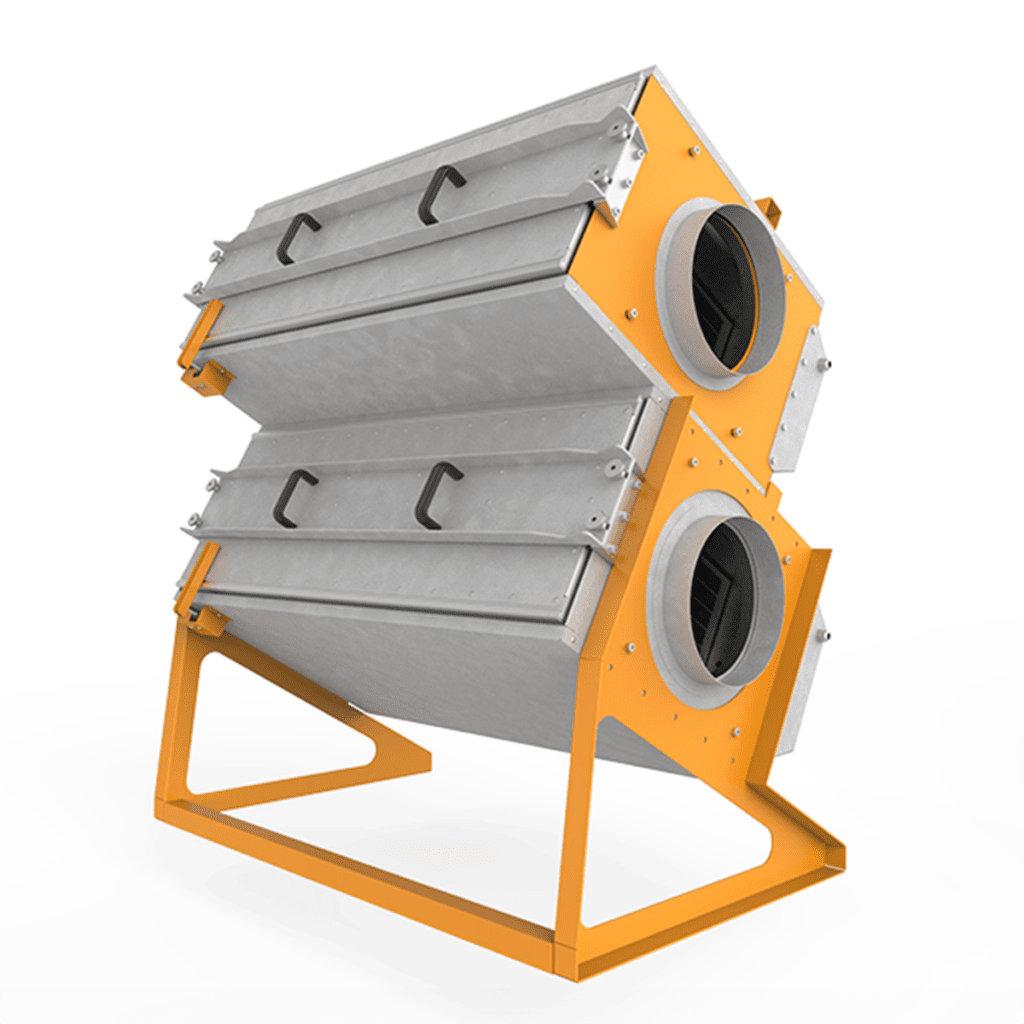

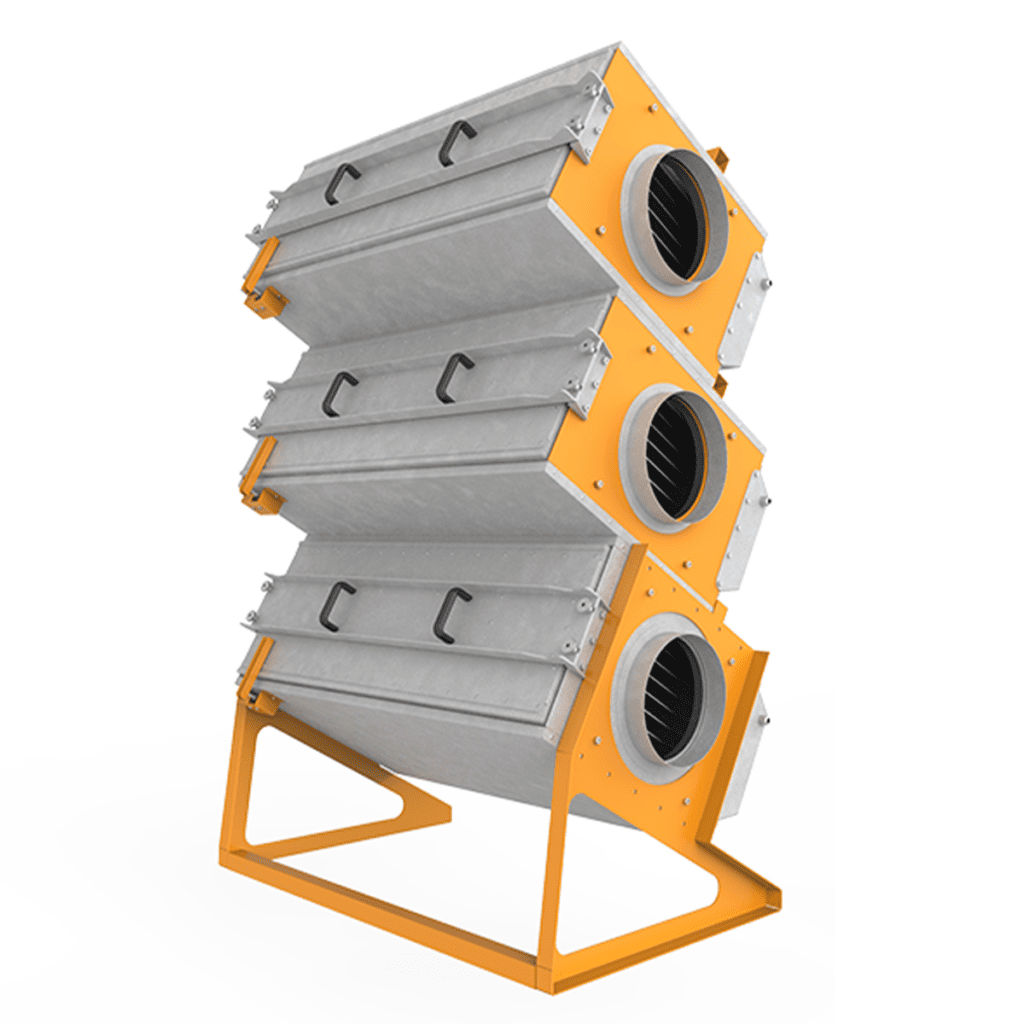

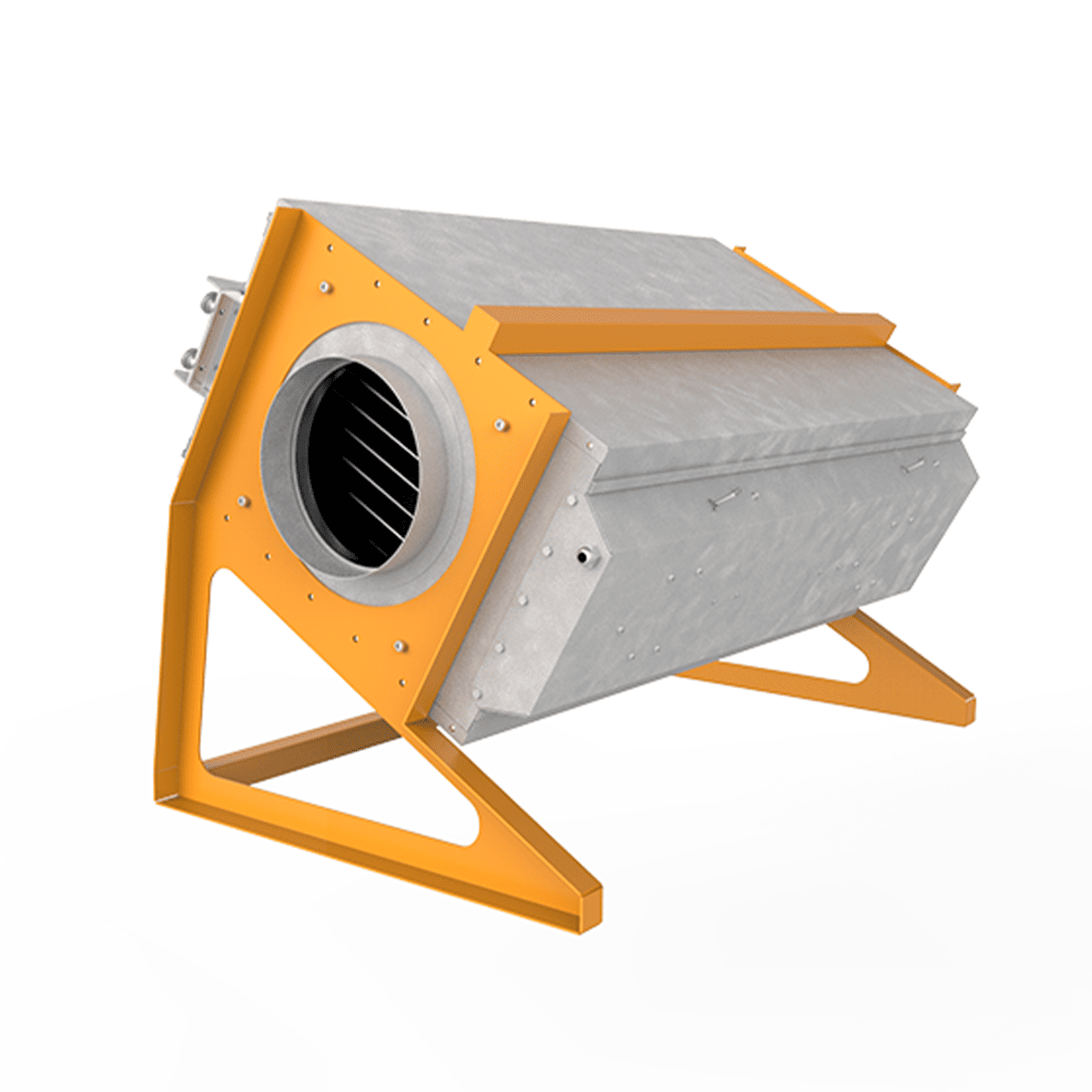

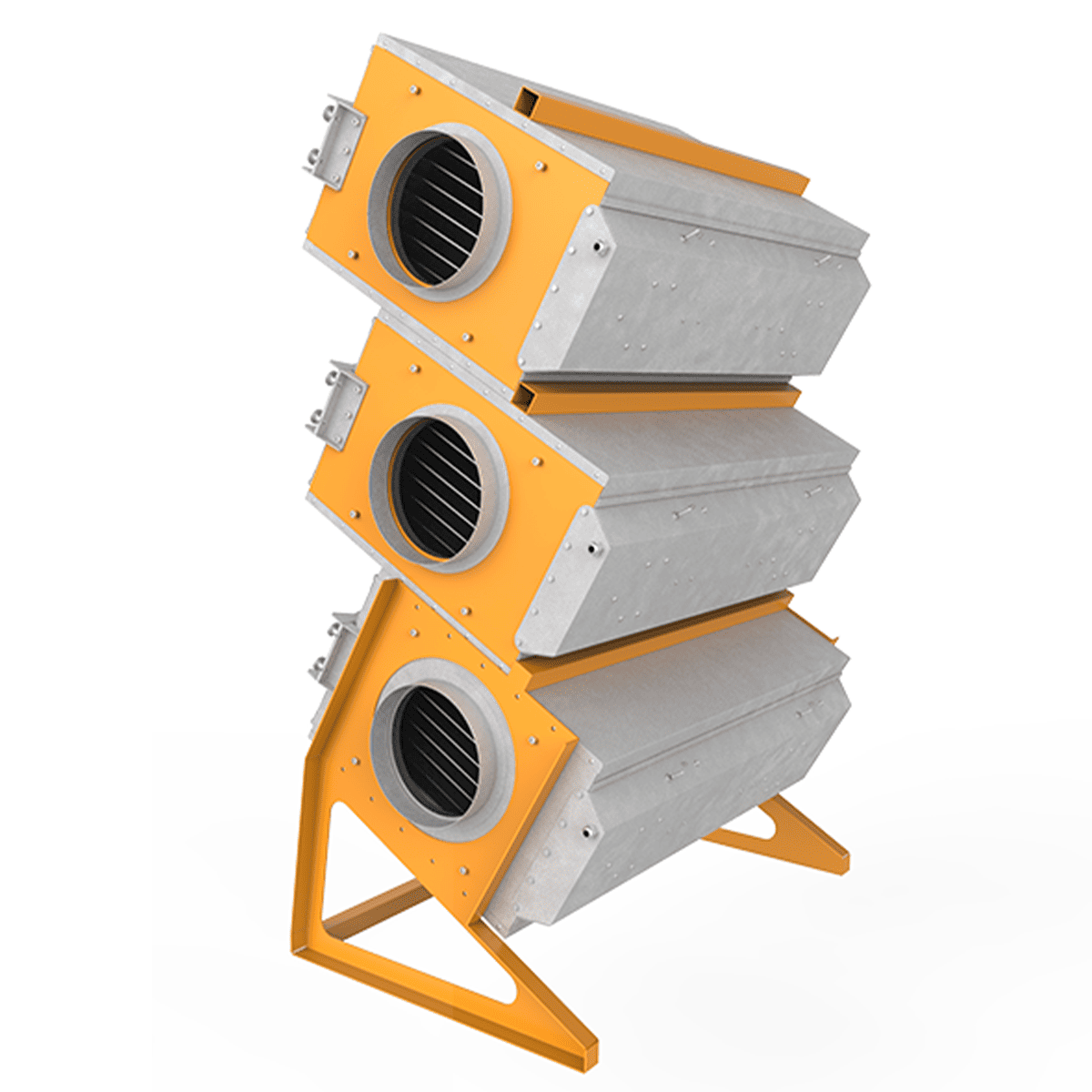

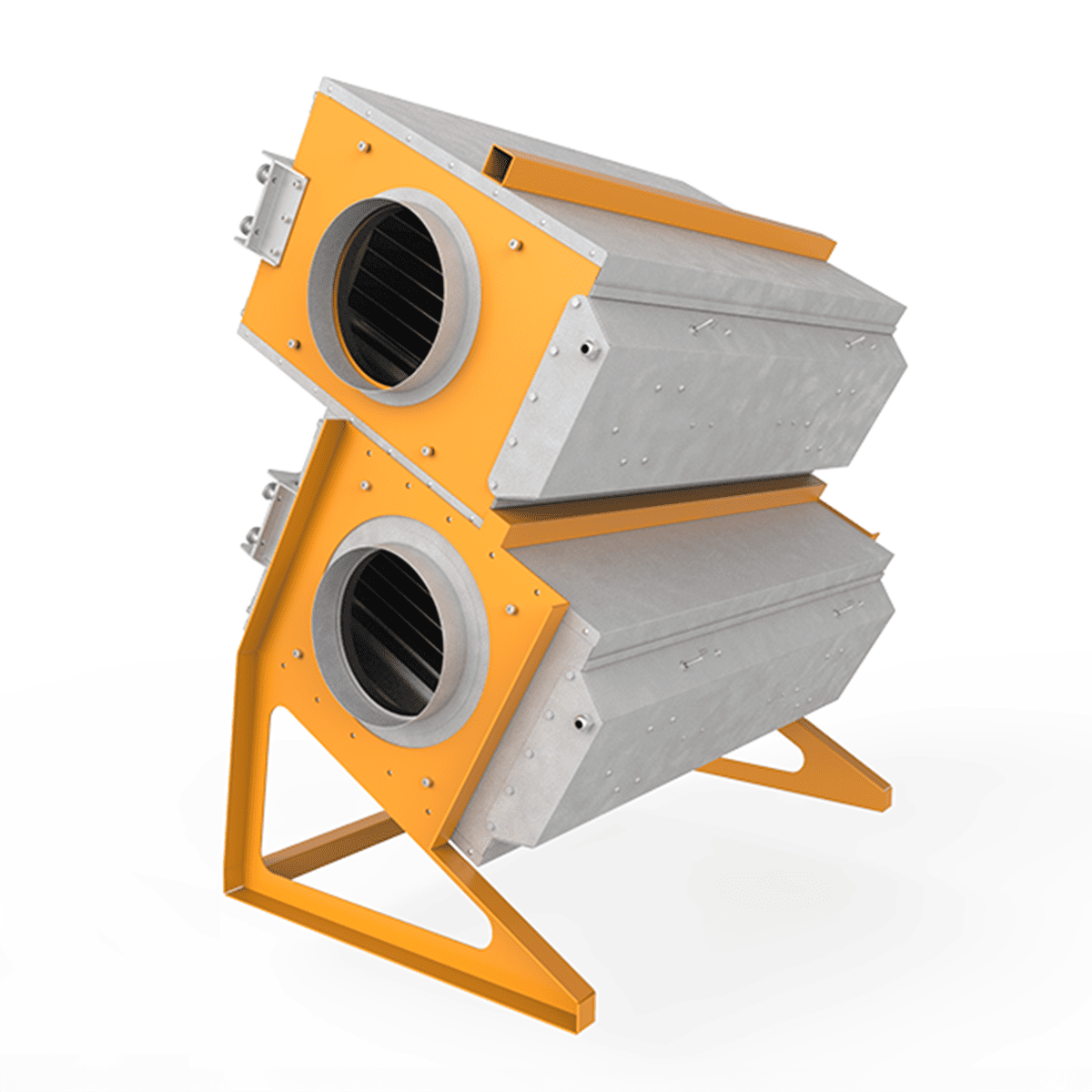

Commercial Avirnaki

Environmentally friendly pollution elimination solution.

Roasting involves smoke and emissions. In addition, roasting halls and roasteries need to be vented with fresh air to evacuate pollution from your roaster, handling green coffee, or grinding roasted coffee. The Commercial Avirnaki is the most environmentally friendly pollution elimination solution.

The Commercial Avirnaki is a full-flow type, smoke elimination solution using the lowest energy consumption possible. You finally can choose a green, efficient, non-combustible product that will protect the environment AND your wallet.

Coffee-Tech’s Commercial Avirnaki is treating not only 1st hand pollution from the roaster’s exhaust (smoke), but it also helps to vent the air inside the roasting room by drawing both the roaster exhaust and ambient air. By venting these two together, the result is a clean, smoke and pollution-free environment inside and out.

The Commercial Avirnaki works for all Coffee-Tech commercial machines, from the Silon ZR7 to the Ghibli R90.

The System is entirely electrically operated with exceptionally low consumption. The filters inside are metal and built for multiuse requiring only to be cleaned periodically.

Features:

• Heavy-duty construction and high performance
• No gas connection
• Green product, no combustible fuel consumption, Low electricity consumption vs high efficiency
• No gasses emitted to the environment compared to fuel/gas combustion such as CO, NOx, CO2, SOx and similar
• Equipped with its own Digital air flow regulated booster blower
• easily detachable cleaning filters, washable with green solution
• Helps roaster to breathe naturally, even with complicated duct configuration
• Helps maintain a healthy environment for the roast master and surroundings, the device helps expel all harmful gases from the roasting ambient also outside the roaster itself.

Who needs Commercial Avirnaki?

Roasting machines produce a few different types of pollution for different reasons and the solutions are limited.

The most common solution is the Afterburner, also offered by Coffee-Tech, available in the market with different configurations and levels of efficiency. The main reason for installing afterburners was the smell and smoke emanating from the roasted coffee, containing mainly organic particles, steam, oil fumes and a volatile aroma. It is this type of pollution that Avirnaki excels in.

The more violent pollution can be the byproduct of the incomplete combustion of the burning fuel which an afterburner cannot solve and, in certain cases, can even double the problem due to the additional gas burner in use.

With the Avirnaki, you can be sure you will not add anything such as all these harmful pollutants when you burn gas. Avirnaki creates no additional pollution whatsoever, and it will never contribute anything bad to your duct as a gas burner can do from time to time for many reasons, from burner type or tuning to inconsistent quality of the gas.

Technology & Features

solar shop roaster

Low Energy Consumption

Energy efficient product, low electricity consumption

solar shop roaster

Green Product

(Optional) This product excels in its low rates of emission and air pollution.

solar shop roaster

Smoke-Free

(Optional) An efficient and green smoke elimination system.

avirnaki smokeless roaster

Multi-Use Filter

Filter may be used multiple times if users follow user manual procedures.

avirnaki smokeless roaster

Pollution Free Ambient

Cleans potentially harmful emissions from your exhaust. Creating a pollution-free ambiance for roasters, workers, and patrons.

fz94 pro lab roaster

Blower Speed Control

Electronic drum venting control, setting convective heat percentage while roasting

Technical Specifications

Materials

Galvanized steel/Electrolyte steel/Aluminum

Electrical Specifications

Single/Double/Triple Commercial Avirnaki: 220-240VAC, 50-60hz, 120W/240W/360W

Weight

Single Commercial Avirnaki 115Kg (254 lb)

Dimensions

Single Commercial Avirnaki: 108(w) x 70(d) x 80(h)cm / 43(w) x 28(d) x 31(h) Inch

Download Documentation

Download Product Brochure
